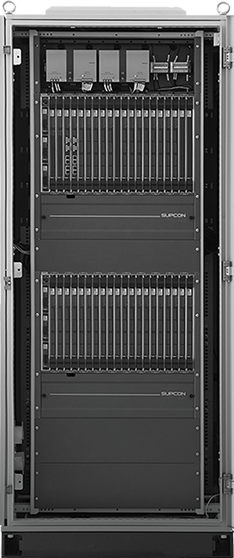

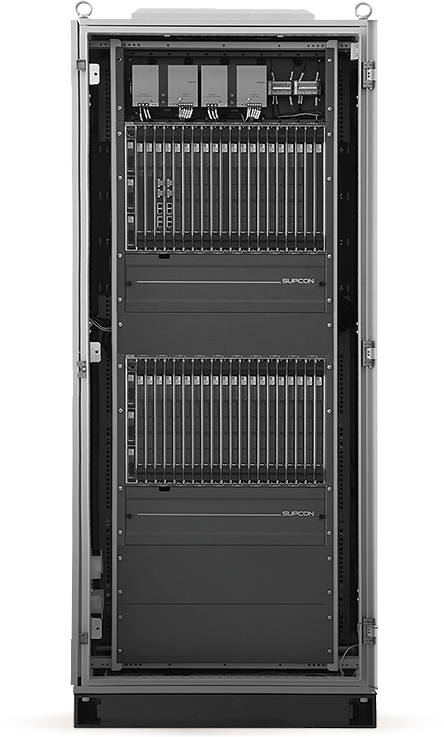

Process Safety System
TCS-900
Webfield® TCS-900 is meticulously created for critical processes in the most challenging industries, requiring continuous safe operation. It follows all relevant IEC standards and has proven reliable in severe conditions. Rigorously tested, it is TÜV Rheinland SIL3 certified.
All in your control: a critical process safety system assuring high reliability and availability

Safety Integrity
To ensure a high hardware fault tolerance, Webfield® TCS-900 is designed with dual redundant controllers of triple modular redundancy architecture supporting 3-3-2-2-0 five-layer voting mechanism.

Triple Modular Redundancy
TMR architecture is adopted throughout from input modules to controllers to output modules. Each module houses three independent channels passing isolated data. Each controller performs parallel input, prosessing and output of data respectively. In case of failure, data are reselected in nanoseconds with no host-to-standby switching process.

5-Layer Voting
5-layer voting mechanism is devised to strengthen error-free and uninterrupted process operation. By segmenting and isolating failures to the maximum extent possible, spurious trip is optimally avoided. A single point of failure will not trigger a degrade, allowing the system to continiously work in triplicated control without any interruption.

Safety Integrity
To ensure a high hardware fault tolerance, Webfield® TCS-900 is designed with dual redundant controllers of triple modular redundancy architecture supporting 3-3-2-2-0 five-layer voting mechanism.

Triple Modular Redundancy
TMR architecture is adopted throughout from input modules to controllers to output modules. Each module houses three independent channels passing isolated data. Each controller performs parallel input, prosessing and output of data respectively. In case of failure, data are reselected in nanoseconds with no host-to-standby switching process.

5-Layer Voting
5-layer voting mechanism is devised to strengthen error-free and uninterrupted process operation. By segmenting and isolating failures to the maximum extent possible, spurious trip is optimally avoided. A single point of failure will not trigger a degrade, allowing the system to continiously work in triplicated control without any interruption.

Enhancing Efficiency & Automation
High Environmental Resilience
- EFT Immunity 4A
- Surge Immunity 4A
- ESD Immunity 4A
- Altitude 4km
- Airborne Contaminant G3
Proven Reliability & Global Adoption
- 100+ Million hours of safe operation in critical industries
- 9,000+ SIS installations worldwide
- $2.3 billion+ contract value in SIS engineering
- 25+ years of experience in SIS applications
- 230+ professional SIS engineers, including 38 TÜV-certified experts

Discover how our products are used in the real world

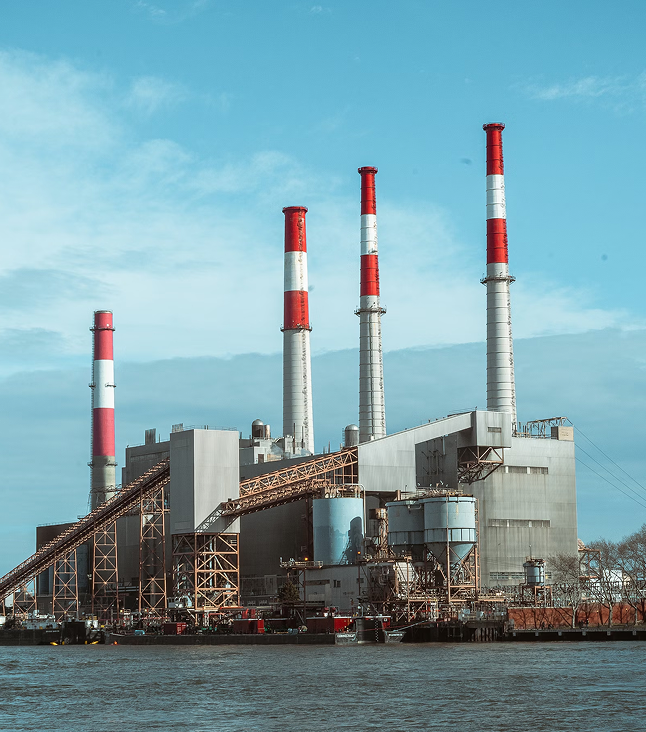

Raw Material and Energy Structure Adjustment Project for the 320,000-ton Ammonia-Alcohol Production Unit
SUPCON has successfully partnered with Anhui Quansheng Chemical Co., Ltd. for the 320,000-ton ammonia-alcohol production unit raw material and energy structure adjustment project. Leveraging HT-L gasification and advanced synthesis technologies, the project integrates SUPCON’s ECS-700 and TCS-900 control systems, ensuring seamless operation. The unit has been successfully commissioned, achieving stable production of high-quality synthetic ammonia, further strengthening SUPCON’s expertise in coal chemical automation and laying a solid foundation for future industry advancements.
